Hydraulic Drill Rig with Caterpillar Base
Max Torque : 90 kNm
Max drill diameter: 1200 mm
Max drill depth: 28 meter (interlocking) / 38 meter (frictional)
Engine: CAT C4.4
Displacement(L) 4.4
Rated Power(kW/rpm) 93/2200
Kelly Bar Type :Interlocking
Kelly bar outer diameter: 299 mm
Section length: 5x8meter
KR90C DRILL RIG

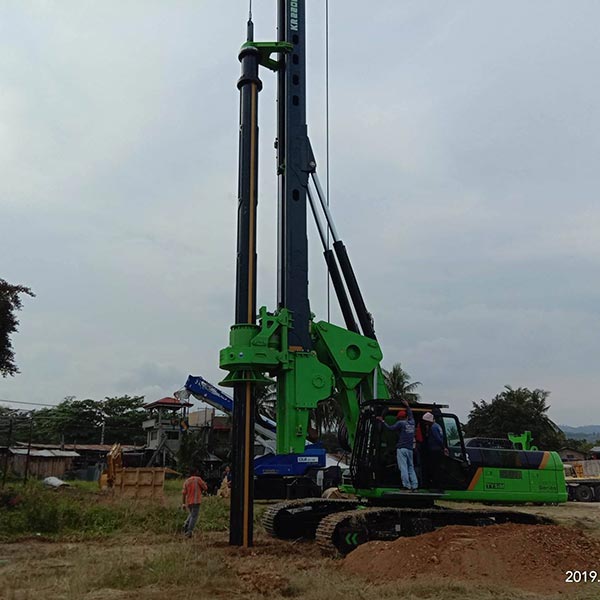

Max Torque: 165 kNm
Max Drill Diameter: 1500 mm
Max Drill depth: 58 m / 46 m
Engine: CAT C7.1
Displacement(L) 7.1
Rated Power(kW/rpm): 117/1800
KR165C DRILL RIG

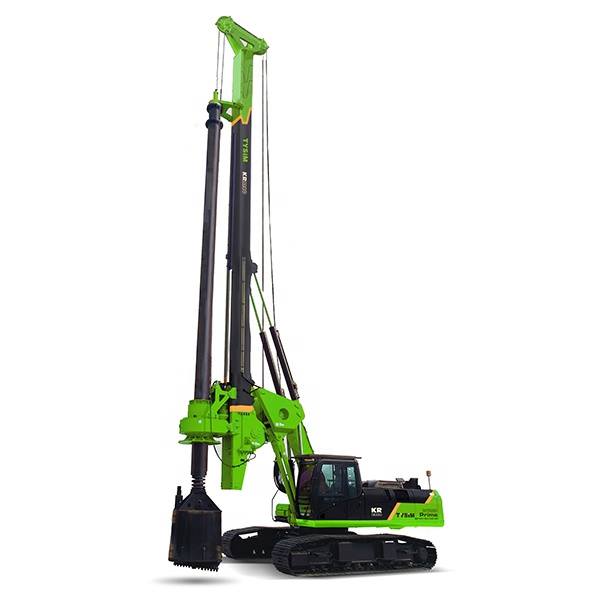

Max Torque: 220 kNm
Max Drill diameter: 2000 mm
Max. depth: 51meter (interlocking) / 64meter (frictional)
Engine: CAT C7.1
Displacement(L) 7.2
Rated Power(kW/rpm) 186/1800
KR220C DRILL RIG

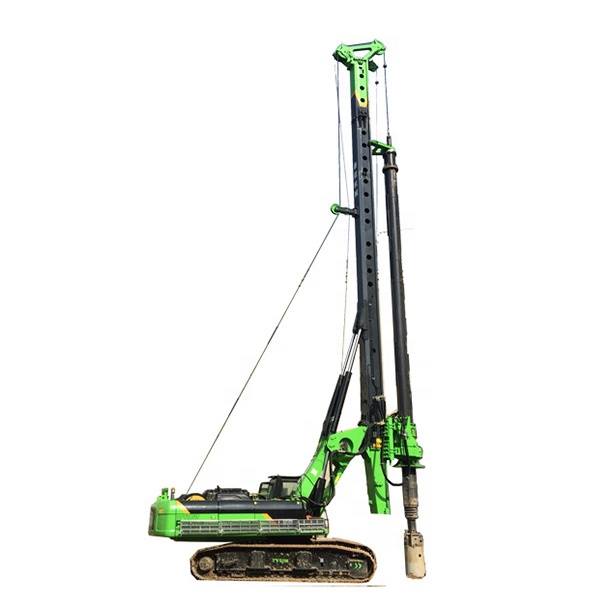

Max. Torque 285 kNm
Max. diameter: 2300 mm
Max. depth: 54meter (interlocking) / 83meter (frictional)
Engine: CAT C9
Displacement(L) 8.8
Rated Power(kW/rpm) 261/1800
KR285C DRILL RIG
